HRC55° Series Solid Carbide Roughing End Mill - JINAN XINYU CEMENTED CARBIDE CO.,LTD

HRC55° Series Solid Carbide End Mill/

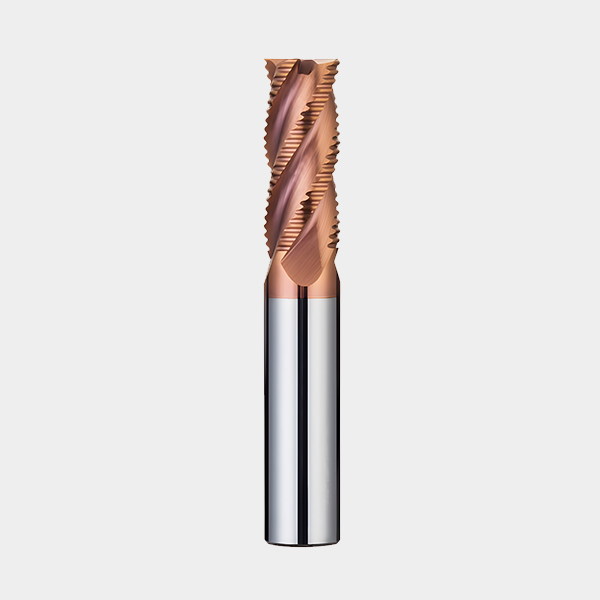

HRC55° Series Solid Carbide Roughing End Mill

It is recommended to process materials below HRC55°, such as carbon steel, alloy steel, cast iron,ductile iron and copper.

  • Product Details

Specification Blade diameter Blade length Shank diameter Overall length Number of blades
D4*10L*D4*50L*4F 4 10 4 50 4
D5*13L*D5*50L*4F 5 13 5 50 4
D5*13L*D6*50L*4F 5 13 6 50 4
D6*15L*D6*50L*4F 6 15 6 50 4
D8*20L*D8*60L*4F 8 20 8 60 4
D6*24L*D6*75L*4F 6 24 6 75 4
D8*25L*D8*75L*4F 8 25 8 75 4
D10*25L*D10*75L*4F 10 25 10 75 4
D12*30L*D12*75L*4F 12 30 12 75 4
D6*30L*D6*100L*4F 6 30 5 100 4
D8*35L*D8*100L*4F 8 35 8 100 4
D10*40L*D10*100L*4F 10 40 10 100 4
D12*45L*D12*100L*4F 12 45 12 100 4
D14*45L*D14*100L*4F 14 45 14 100 4
D16*45L*D16*100L*4F 16 45 16 100 4
D18*45L*D18*100L*4F 18 45 18 100 4
D20*45L*D20*100L*4F 20 45 20 100 4
D16*70L*D16*150L*4F 16 70 16 150 4
D20*70L*D20*150L*4F 20 70 20 150 4

Other models can be customized.
